The Trail Destroyer’s big Brother, and our Flagship model, Cues 10 Speed, SR Suntour X1 Air Boost Suspension Fork with remote Lockout and bigger better Maxxis tyres. Rugged and all Terrain, this e-bike does exactly as its name suggests.
| Electric System |
|
| Motor |
250w 36v rear hub brushless gear drive |
| Torque |
Powerful 45Nm regulated to 15.5mph |
| Battery |
504Wh (14Ah) 36v internal with LG / Samsung cells |
| Controller |
540Wh (15Ah) 36v with throttle cable option |
| Sensor |
12 magnetic point speed sensor |
| Display |
5 mode LCD module with walk assist |
| Charger |
2Ah 36v smart charger – 4 hours charge time |
| Cables |
Waterproof IP67 with quick connectors |
| Frameset |
|
| Frame Sizes |
15″ / 17″ / 19″ |
| Colours |
Army Green |
| Frame |
Alloy eMTB with internal routed cables & battery |
| Fork |
SR Suntour X1 Air Boost with Thru Axle and Remote Lockout |
| Brakes |
|
| Brakes |
Tektro hydraulic disc brakes |
| Brake Levers |
Alloy 2 finger with safety power cut-off |
| Brake Rotors |
180mm front & 160mm rear |
| Drivetrain |
|
| Gear Shifters |
Shimano CUES 10 Speed |
| Gear Derailleur |
Shimano CUES |
| Cassette |
Shimano CUES 11-48T |

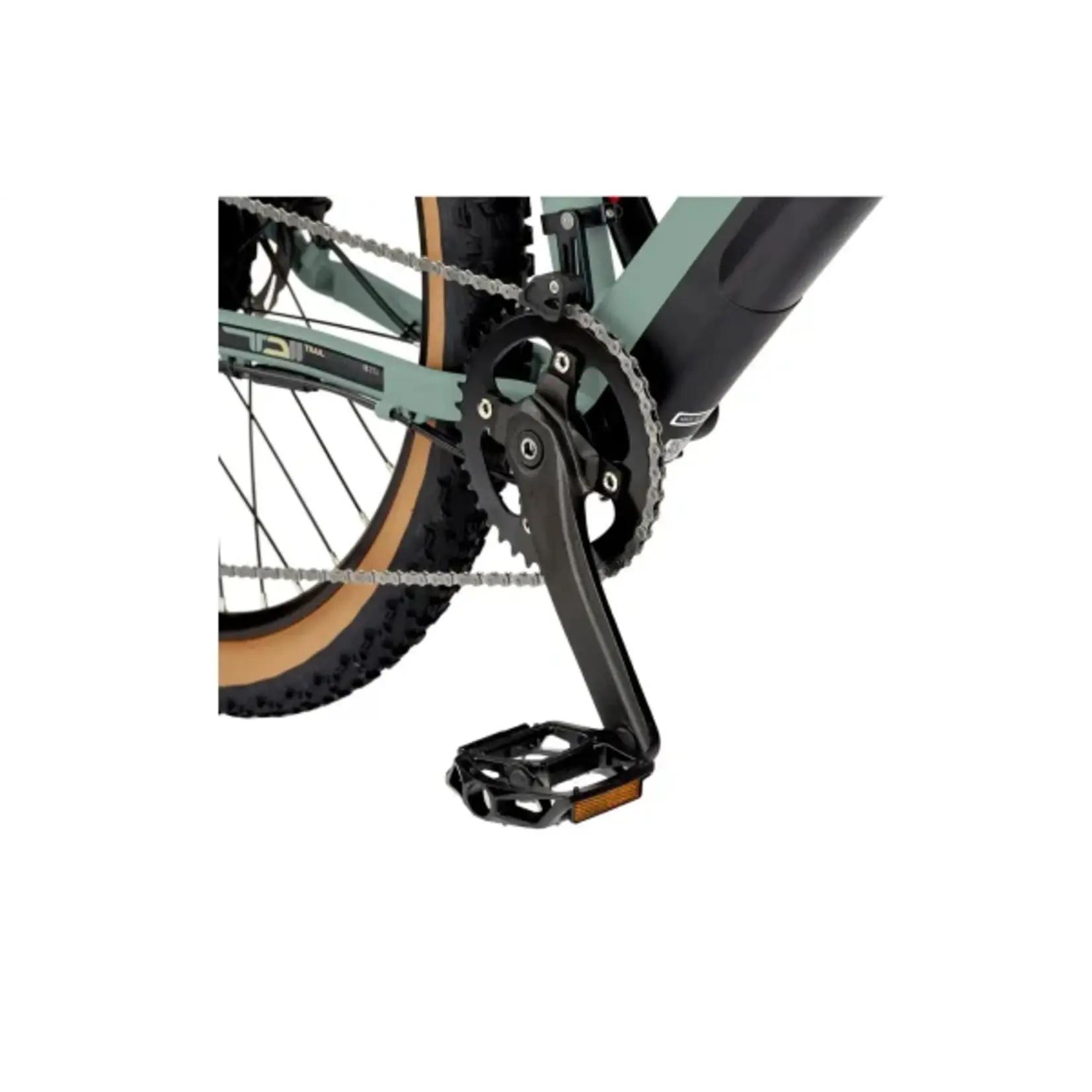

| Chainset |
Alloy 40 tooth 175mm |
| Pedals |
Alloy flat |
| Bottom Bracket |
Sealed cartridge |
| Chain |
KMC anti-rust |
| Wheels |
|
| Tyres |
Maxxis Ardent 27.5 x 2.4 Tanwall TR Ready Foldable |
| Inner Tubes |
High pressure Presta valve |
| Rims |
Alloy double wall 36 hole |
| Front Hub |
Alloy thru axle with sealed bearings |
| Spokes |
Stainless with brass nipples – 13 gauge front / 12 gauge rear |
| Components |
|
| Saddle |
WTB Rocket |
| Seat Post |
Alloy dual adjust 350mm |
| Seat Clamp |
Alloy with allen key bolt |
| Handlebar |
Alloy 780mm – 31.8 bar bore |
| Stem |
Alloy 50mm |
| Grips |
Velo double density MTB with lockrings |
| Headset |
Alloy semi-integrated with 3 spacers |
| Information |
|
| eBike Weight |
17.5kgs |
| Battery Weight |
3.5kgs |
| Total Weight |
21kgs |
