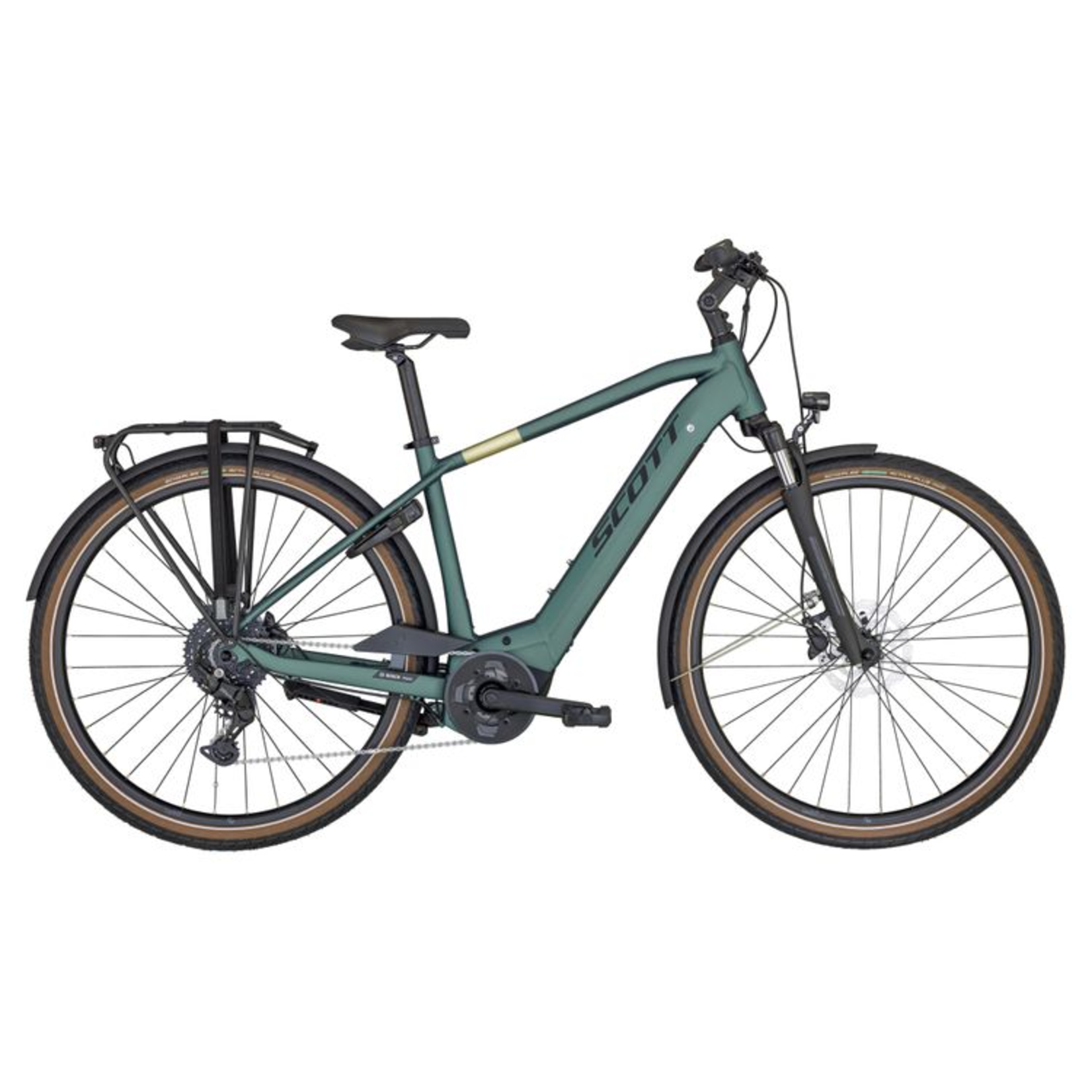

The Sub Active eRIDE provides outstanding comfort and simplicity. Thanks to the wide saddle and the high cockpit, never feel uncomfortable on your bike. The lights, the rack and the fenders makes it city ready.
| Frame |
6061 Alloy custom butted tubingBosch 400Wh integrated Battery / Internal cable routing |
| Fork |
SUNTOUR NEX-E25 DS QR 700C / 63mm Travel |
| Drive Unit |
Bosch ActiveEU: 25kmh / US: 20mph |
| Battery |
PowerTube 400Wh |
| Display |
Purion |
| Charger |
2A Charger |
| Rear Derailleur |
Shimano CUES ARDU4000GS 9 Speed |
| Shifters |
Shimano CUES ASLU40009RC 9 Speed |
| Crankset |
Miranda 1725mm |
| Chainring |
38T Chainflow / Chainprotector |
| Chain |
KMC eGLIDE |
| Cassette |
Shimano CS-LG3009 11-41T |
| Brakes |
Shimano BR-M200 Disc |
| Rotor |
180/F SM-RT10 and 160/R SM-RT10 |
| Handlebar |
Syncros UC3.0 680mm / 10° bend |
| H'stem |
Syncros UC 3.0 adjustable |
| Seatpost |
Syncros 3.0 / 31.6mm / 350mm |
| Seat |
Syncros Capilano |
| Headset |
GW semi integrated |
| Hub (Front) |
Shimano HBMT200B 32H QR CL |
| Hub (Rear) |
Shimano FHMT200BB41B 32H QR CL |
| Spokes |
BLACK spokes * F: 14G / R: 13G |
| Rims |
Cross X17 Disc 32h |
| Front Tire |
Schwalbe Energizer Active Plus 700x50c |
| Rear Tire |
Schwalbe Energizer Active Plus 700x50c |
| Lights |
Front: Axa Compactline 35 / Rear: Axa |
| Rack |
Racktime w/ spring clamp SnapIt 2.0 |
| Pedals |
Syncros SP-828 |
| Extras |
Abus 4750L ART approved / Battery Lock |
| Accessories |
Curana wide extruded fendersUrsus Mooi Central kickstand |
| Approx weight in KG |
26.20 |
| Approx weight in LBS |
57.76 |
| Max. System Weight |
128 kgThe overall weight includes the bike, the rider, the equipment, and possible additional luggage. |
