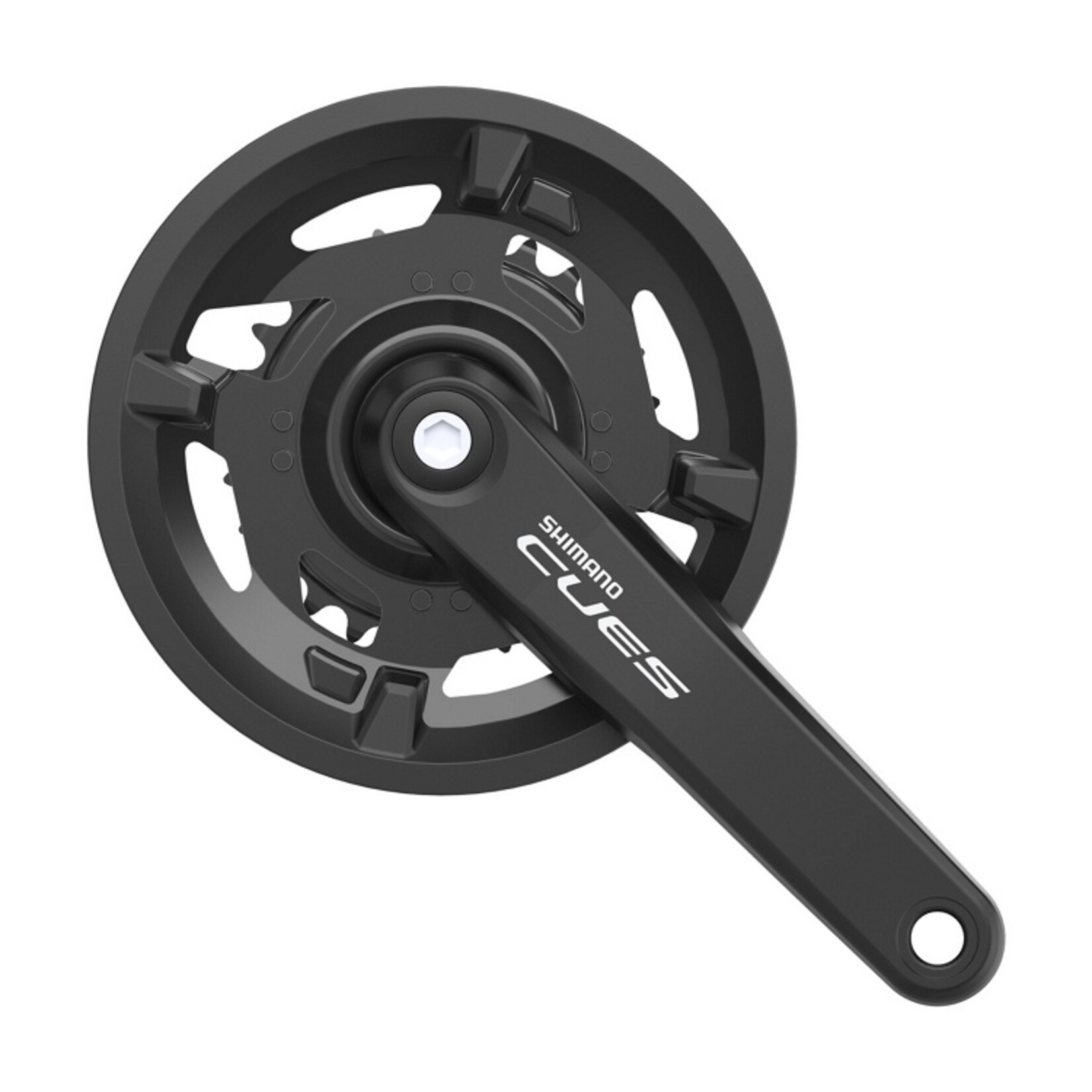

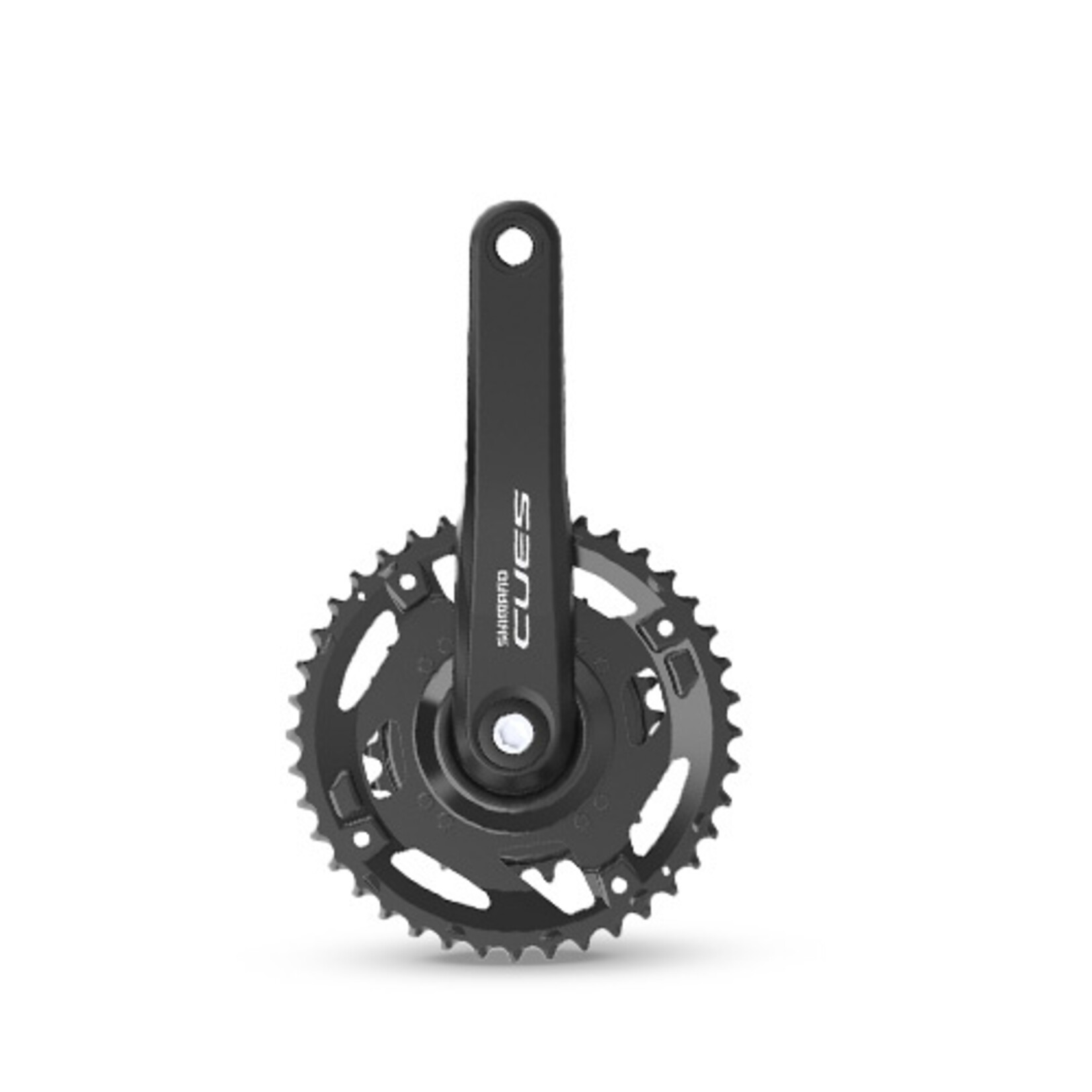

SHIMANO CUES FRONT CHAINSET FC-U4000-2

SPECIFICATIONS

MODEL NO	FC-U4000-2
SERIES	CUES U4000 Series
Color	Series color
Rear speeds	11/10/9
Compatible chain	LINKGLIDE, HG 11-speed
Chain line (mm)	48.8
O.L.D.\|Thru (mm)	142
O.L.D.\|QR/Nut (mm)	135
P.C.D. (mm)	Riveted
Spider/gear arms	4
Chainring combination	36-22T, 40-26T
Q-factor (mm)	178
Crank arm length (mm)\|170	✔
Crank arm length (mm)\|175	✔
Optional chain guard\|With chain guard	X (40-26T)
Optional chain guard\|Without chain/bash guard	✔
Compatible bottom bracket type\|Square	✔
Recommended bottom bracket\|Threaded (normal)	BB-UN101
Axle length of BB-UN/ES (mm)\|Threaded (normal)	LL123
Threaded bottom bracket shell width (mm)\|68	✔
Threaded bottom bracket shell width (mm)\|73	✔
Crank fixing screw included	✔
