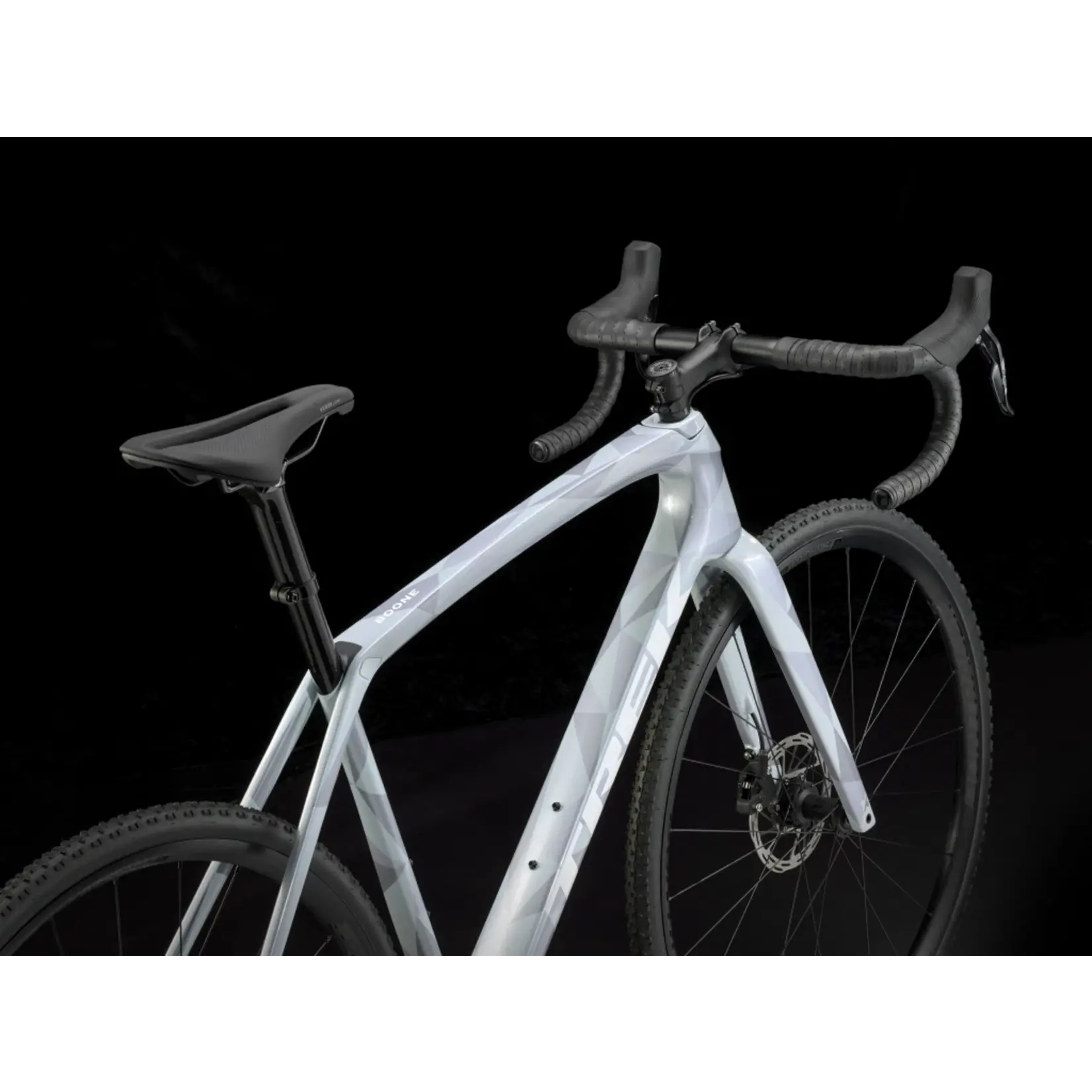

TREK BOONE 5 PLASMA GREY

product description

The Boone 5 Disc is a carbon cyclocross race bike that's built for crushing any CX course – even the most legendary on the UCI circuit. The sleek, lightweight carbon frame has terrain-smoothing Rear IsoSpeed and is trimmed with parts that perform in any conditions, like a capable SRAM Apex drivetrain, vibration-absorbing handlebar and powerful disc brakes that deliver stopping power in bumpy, muddy terrain.

Your happy place is in mid-air, bunny hopping over barriers and you race every course in pursuit of that top spot on the podium. You want a high-end CX racing bike designed to help you get there and look great doing it.

A svelte, ultra-lightweight 600 Series OCLV Carbon frame with Rear IsoSpeed for comfort and traction, hidden cable routing for added protection from the elements, a Trek IsoSpeed Cross carbon fork, 1x12 SRAM Apex XPLR drivetrain, Bontrager Elite IsoZone handlebar and powerful flat-mount hydraulic disc brakes that provide precision stopping power in even the messiest conditions.

If you love crushing frites almost as much as crushing flyovers, the Boone's the bike for you. It's made for pure speed and podium-topping performance on every section of course, in any conditions.

SPECIFICATIONS

Frame	600 Series OCLV Carbon, IsoSpeed, tapered head tube, Internal cable routing, Ride Tuned seat mast, 3S chain keeper, T47 BB, flat-mount disc, 142x12 mm thru-axle
Fork	Trek Cross, full carbon, tapered carbon steerer, flat mount disc, 12x100mm thru axle
Wheel front	Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, 100x12 mm thru axle
Wheel rear	Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, Shimano 11/12-speed freehub, 142x12 mm thru axle
Skewer front	Bontrager Switch thru axle, removable lever
Skewer rear	Bontrager Switch thru-axle, removable lever
Tyre	Bontrager CX3 Team Issue, aramid bead, 120 tpi, 700x32 mm
Max tyre size	38mm
Shifter	SRAM Apex, 12-speed
Rear derailleur	SRAM Apex XPLR, 44T max cog
*Crank	Size: 49SRAM Apex 1, 40T, DUB Wide, 165 mm length
	Size: 52SRAM Apex 1, 40T, DUB Wide, 170 mm length
	Size: 54, 56SRAM Apex 1, 40T, DUB Wide, 172.5 mm length
	Size: 58, 61SRAM Apex 1, 40T, DUB Wide, 175 mm length
Bottom bracket	SRAM DUB, T47 threaded, internal bearing
Cassette	SRAM XPLR PG-1231, 11-44, 12-speed
Chain	SRAM Apex, 12-speed
Max. chainring size	See service manual
*Saddle	Size: 49, 52Verse Short Comp, steel rails, 155 mm width
	Size: 54, 56, 58, 61Verse Short Comp, steel rails, 145 mm width
*Seatpost	Size: 49, 52, 54, 56Bontrager carbon seat mast cap, 5 mm offset, short length
	Size: 58, 61Bontrager carbon seat mast cap, 5 mm offset, tall length
*Handlebar	Size: 49Bontrager Elite IsoZone VR-CF, alloy, 31.8 mm, 93 mm reach, 123 mm drop, 38 cm width
	Size: 52Bontrager Elite IsoZone VR-CF, alloy, 31.8 mm, 93 mm reach, 123 mm drop, 40 cm width
	Size: 54, 56Bontrager Elite IsoZone VR-CF, alloy, 31.8 mm, 93 mm reach, 123 mm drop, 42 cm width
	Size: 58, 61Bontrager Elite IsoZone VR-CF, alloy, 31.8 mm, 93 mm reach, 123 mm drop, 44 cm width
Handlebar tape	Bontrager Supertack Perf tape
*Stem	Size: 49Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
	Size: 52, 54Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
	Size: 56, 58Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
	Size: 61Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length
Brake	SRAM Apex hydraulic disc, flat mount
Brake rotor	SRAM Paceline, rounded, CentreLock, 160 mm
Brake lever	SRAM Apex, 12-speed
Rotor size	Max brake rotor sizes: 160 mm front and rear
Weight	56 - 8.50 kg / 18.74 lbs
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
