| Frame |
100 Series Alpha Aluminium, tapered head tube, internal routing, mudguard mounts, flat-mount disc, UDH, 142x12 mm thru axle |

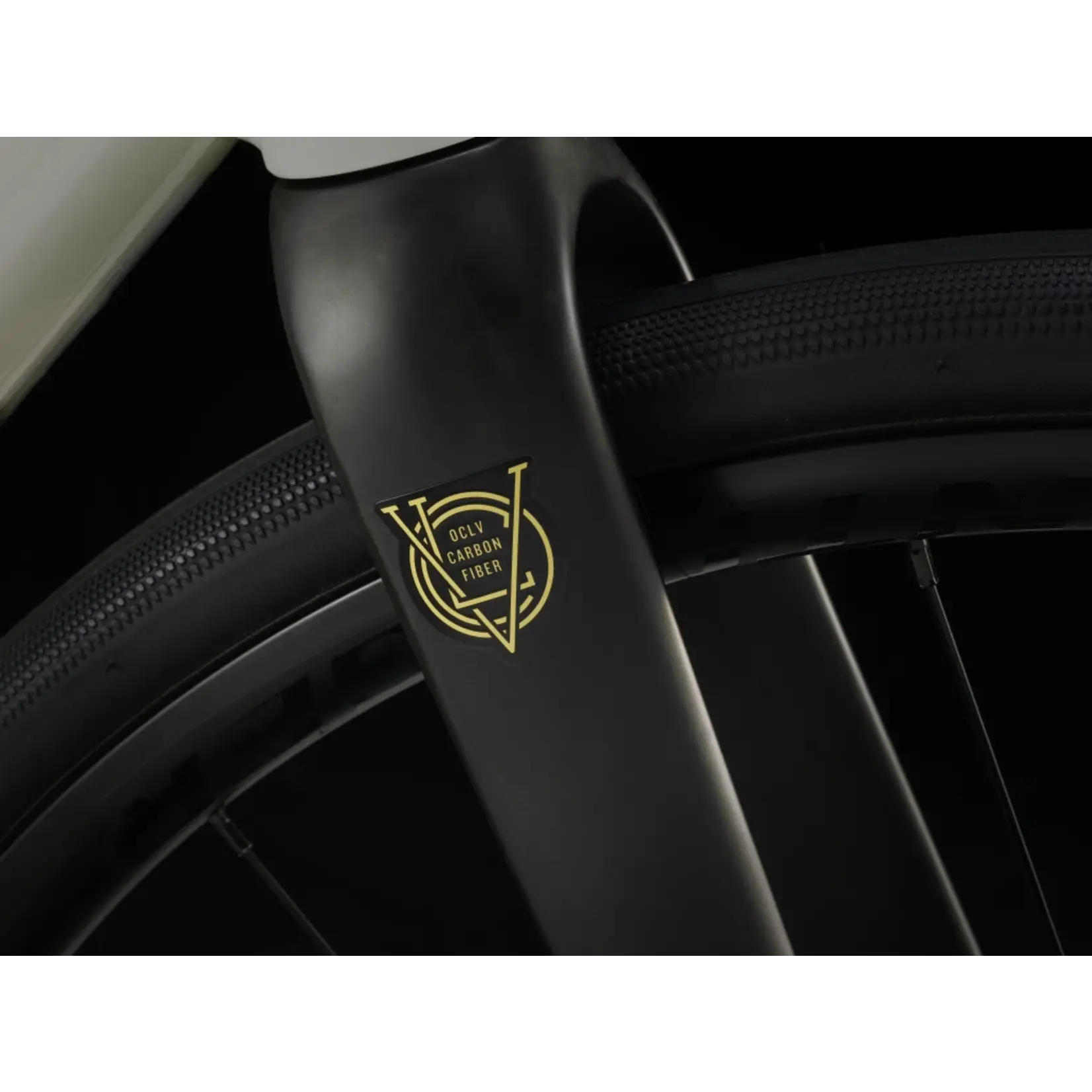

| Fork |
Domane AL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle |
| Weight |
56 - 10.35 kg / 22.82 lb |
| Weight limit |
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb). |
| Shifter |
Shimano Tiagra R4720, 10-speed |
| Front derailleur |
Shimano Tiagra 4700, 31.8 mm clamp |
| Rear derailleur |
Shimano Tiagra 4700, long cage, 34T max cog |

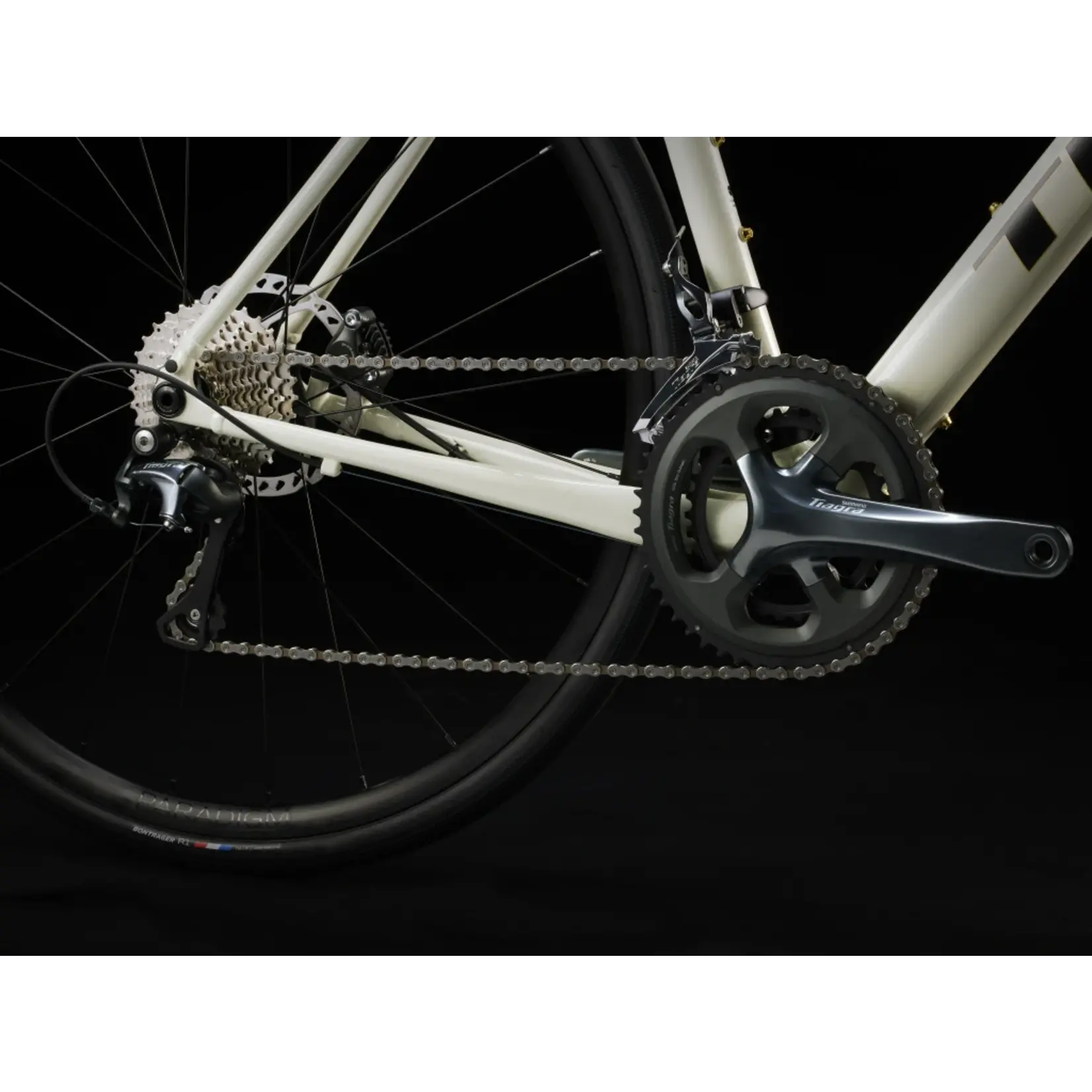

| *Crank |
Size: 44Shimano Tiagra 4700, 50/34, 165 mm length |
| |
Size: 49, 52Shimano Tiagra 4700, 50/34, 170 mm length |
| |
Size: 54, 56Shimano Tiagra 4700, 50/34, 172.5 mm length |
| |
Size: 58, 61Shimano Tiagra 4700, 50/34, 175 mm length |
| Bottom bracket |
Shimano RS501 BSA |
| Cassette |
Shimano 10-speed, 11-32T |
| Chain |
Shimano Tiagra HG54, 10-speed |
| Max. chainring size |
1x: 50T, 2x: 50/34 |
| Hub front |
Formula RX-512 alloy, 6-bolt, 100x12 mm thru axle |
| Skewer front |
Bontrager Switch chamfered thru axle, removable lever |
| Hub rear |
Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142x12 mm thru axle |
| Skewer rear |
Bontrager Switch chamfered thru axle, removable lever |
| Rim |
Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve |
| Spokes |
14 g stainless steel, black |
| Tyre |
Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32 mm |
| Max tyre size |
38 mm without mudguards, 35 mm with mudguards |
| Saddle |
Verse Short, steel rails, 145 mm width |
| *Seatpost |
Size: 44, 49Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 250 mm length |
| |
Size: 52, 54, 56, 58, 61Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length |
| *Handlebar |
Size: 44Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 36 cm control width, 40 cm drop width |
| |
Size: 44, 49Bontrager Comp VR-S, alloy, 31.8 mm, 81 mm reach, 118 mm drop, 38 cm width |
| |
Size: 49Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 38 cm control width, 42 cm drop width |
| |
Size: 52Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 40 cm control width, 44 cm drop width |
| |
Size: 52Bontrager Comp VR-S, alloy, 31.8 mm, 81 mm reach, 118 mm drop, 40 cm width |
| |
Size: 54, 56Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 42 cm control width, 46 cm drop width |
| |
Size: 54, 56Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 42 cm width |
| |
Size: 58, 61Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 44 cm control width, 48 cm drops width |
| |
Size: 58, 61Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 44 cm width |
| Handlebar tape |
Bontrager Supertack Perf tape |
| *Stem |
Size: 44Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length |
| |
Size: 49Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length |
| |
Size: 52, 54Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length |
| |
Size: 56, 58Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length |
| |
Size: 61Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length |
| Brake |
Shimano Tiagra hydraulic disc |
| Brake rotor |
Shimano RT66, 6-bolt, 160 mm |
| Rotor size |
Max brake rotor sizes: 160 mm front and rear |
