CloseMarlin 5 is a trail-worthy daily rider that's perfectly suited for everyday adventures, on and off the trail. It features a trail-savvy frame with a suspension fork, 9-speed Shimano CUES shifting and mounts for a rack and kickstand that make it an ideal choice for trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike.
You're new to the trail and you’re looking for a real mountain bike that doubles as a commuter – and you want it all at an exceptional value.
A lightweight aluminium frame with internal routing to protect your cables and add to the bike's sleek look, an upgraded 9-speed Shimano CUES drivetrain, a wide range of gearing so you always have the right gear for your terrain, powerful hydraulic disc brakes and a terrain-smoothing suspension fork with a lockout.
The Marlin 5 is a great ride for all your adventures. It's also versatile and a popular ride on college campuses because the rack and kickstand mounts make it easy to accessorise and haul a load.
Smaller frames have a top tube that dips down as it approaches the seat tube. This design makes for a lower standover height, which is good for shorter riders because it allows them to straddle their bike more easily. Larger frame sizes have a straight top tube because taller riders with longer legs typically don’t have the same issues with standover height.
Marlin comes in seven frame sizes to suit riders of any height, and Smart Wheel Size ensures you’re on the fastest wheel that fits. The smallest sizes even come with short-reach brake levers and narrower handlebars that give smaller riders better comfort and control.
Marlin looks and feels great. It’s packed with features usually found only on more expensive bikes, like a stylish frame with internal shift cable and brake hose routing, which can help your cables last longer by protecting them from the elements.
Inspired by rider demand for trouble-free drivetrain longevity and performance, Shimano CUES offers a new foundation for versatility and durability across a range of both electric and standard bikes. CUES features Shimano’s new LINKGLIDE drivetrain technology for significantly increased life on wear items like chain, cassette and chainrings.
*Frame | Size: XXS , XS Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew |
---|---|
Size: S , M , ML , L , XL , XXL Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew | |
*Fork | Size: XXS SR Suntour XCM 30, coil spring, lockout, preload, 100 mm QR, 100 mm travel, 26" wheel |
Size: XS SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 80 mm travel | |
Size: S SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel | |
Size: M , ML , L , XL , XXL SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel | |
Max compatible fork travel | 120mm, XXS: 80mm |
Hub front | Formula DC-20, alloy, 6-bolt, 5x100 mm QR |
Hub rear | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR |
Skewer rear | 173x5mm QR |
Rim | Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve |
*Tyre | Size: XXS Bontrager XT3 Comp, wire bead, 30 tpi, 26x2.35" |
Size: XS , S Bontrager XT3 Comp, wire bead, 30 tpi, 27.5x2.40" | |
Size: M , ML , L , XL , XXL Bontrager XT3 Comp, wire bead, 30 tpi, 29x2.40" | |
Max tyre size | Frame: 29x2.40" (XXS: 26x2.40", XS & S: 27.5x2.40"), Fork: See manufacturer |
Shifter | Shimano U4000, 9-speed |
Rear derailleur | Shimano CUES U4000 |
*Crank | Size: XXS , XS Prowheel C10Y-NW, 30T steel narrow-wide ring, 160 mm length |
Size: S , M , ML , L , XL , XXL Prowheel C10Y-NW, 30T steel narrow-wide ring, 170 mm length | |
Cassette | Shimano LINKGLIDE LG300, 11-46, 9-speed |

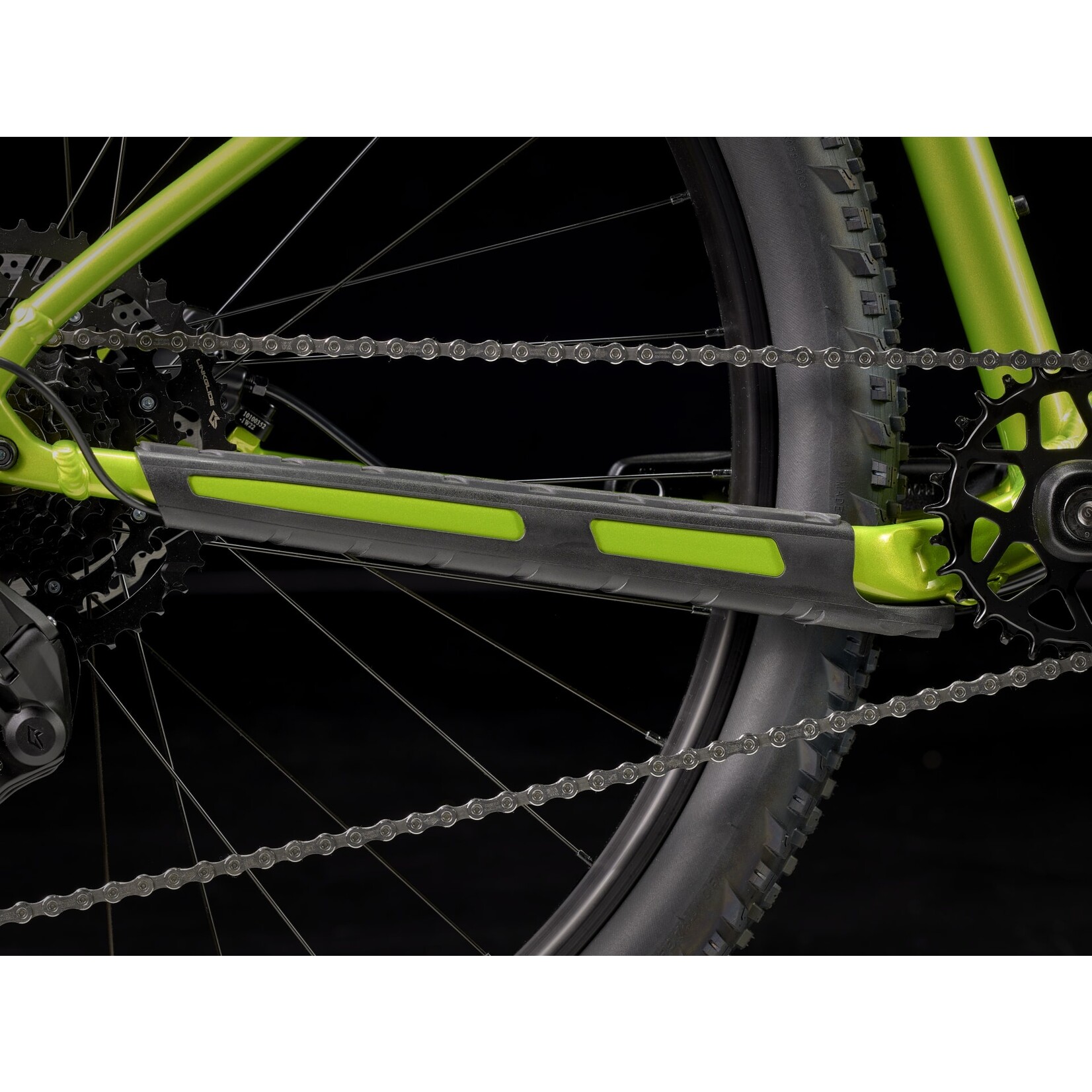

Chain | Shimano LG500 |
Pedal | VP-536 nylon platform |
Max. chainring size | 1x: 34T, 2x: 36/22 |
*Seatpost | Size: XXS Bontrager alloy, 31.6 mm, 12 mm offset, 300 mm length |
Size: XS , S , M Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length | |
Size: ML , L , XL , XXL Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length | |
*Handlebar | Size: XXS , XS Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width |
Size: S Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width | |
Size: M , ML , L , XL , XXL Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width | |
Grips | Bontrager XR Trail Comp, nylon lock-on |
*Stem | Size: XXS , XS , S Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 35 mm length |
Size: M , ML , L Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 50 mm length | |
Size: XL Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length | |
Size: XXL Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length | |
Head set | Semi-integrated, 1-1/8" |

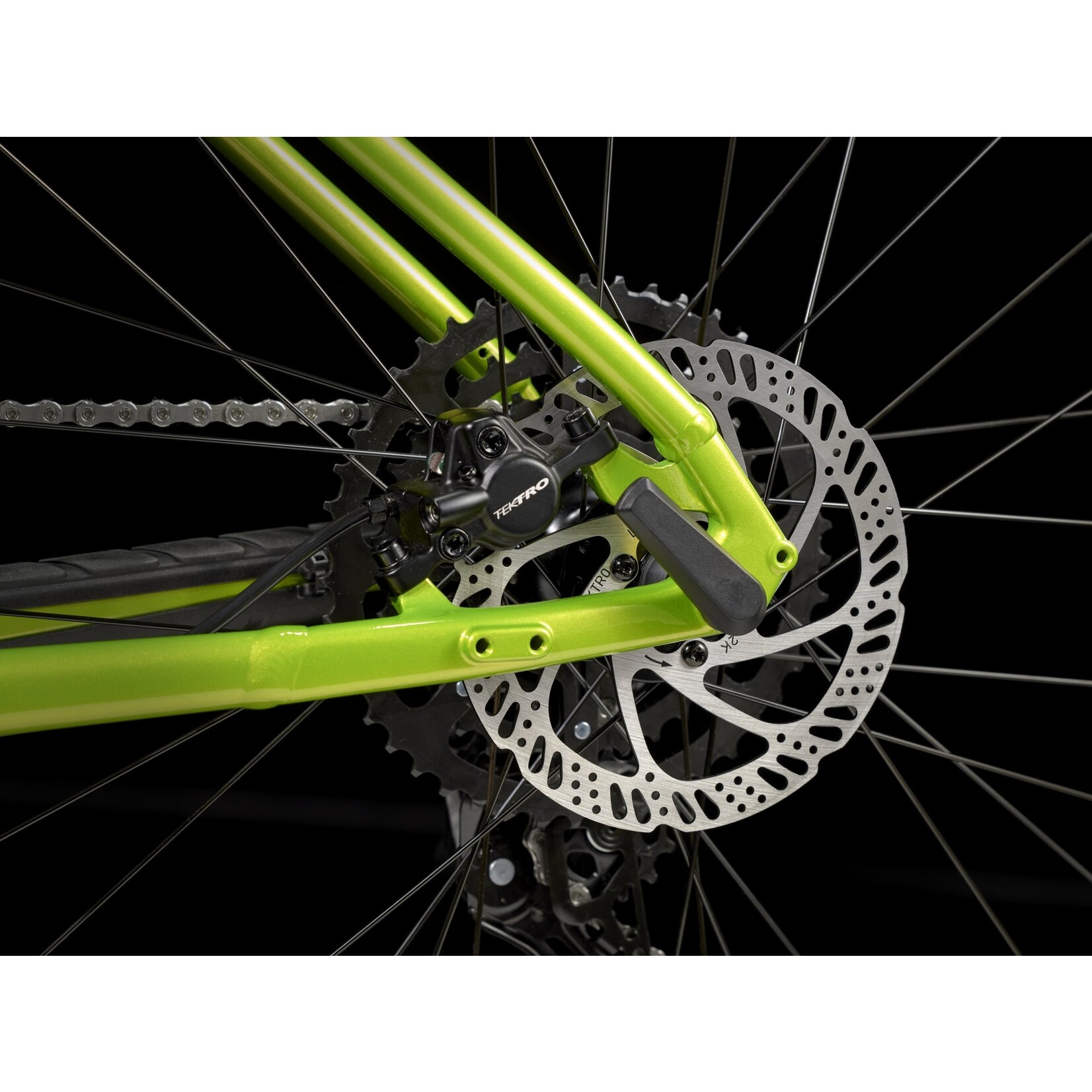

Brake rotor | Tektro, 6-bolt, 160mm |
*Brake Set | Size: XXS , XS , S Tektro HD-M276 hydraulic disc, short reach |
Size: M , ML , L , XL , XXL Tektro HD-M275 hydraulic disc | |
Rotor size | Max brake rotor sizes - Frame: 180mm (XXS: 160mm), Fork: see fork manufacturer |
Weight | M - 15.10 kg / 33.29 lbs (with tubes) |
Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
